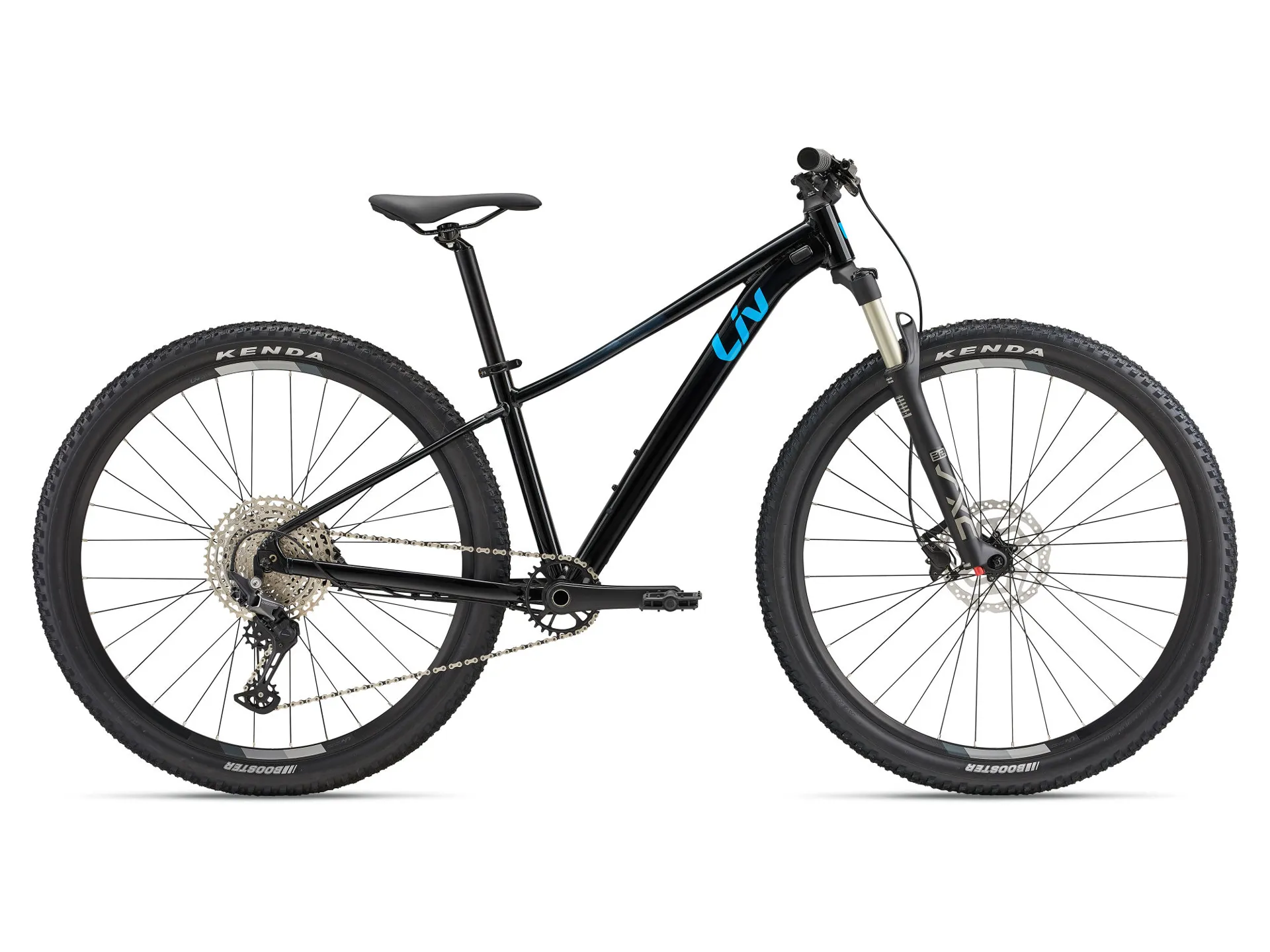

Colours - Gloss Black/AI Blue
Frame - ALUXX-grade aluminium, disc
Fork - SXC32-2 RL 29, air spring, hydraulic lock out, QR, alloy steerer XS 80mm travel All other sizes 100mm travel
Shock - N/A
Handlebar - Giant Connect Trail, 31.8mm
Stem - Giant Sport, 7-degree
Seatpost - Giant Sport, 30.9mm XS 27.5 300mm All other sizes 375mm
Saddle - Liv Sport
Pedals - MTB caged
Shifters - Shimano Deore M6100, 1x12
Front Derailleur - N/A
Rear Derailleur - Shimano Deore M6100
Brakes - Shimano Deore BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers - Shimano Deore BL-MT200
Cassette - Shimano Deore M6100, 10x51
Chain - KMC X12
Crankset - ProWheel MPX, 32t
Bottom Bracket - Cartridge
Rims - Giant GX03V, alloy, double wall, 21mm inner width
Hubs - Shimano, sealed bearing
Spokes - Stainless steel, 14g
Tyres - 27.5": Kenda Booster 27.5x2.4, wire bead 29": Kenda Booster 29x2.4, wire bead
Extras - N/A
Max Tyre Clearance - 2.4"
