Sizes | S, M, L, XL |
Colours | Gloss Orion Nebula/Carbon |

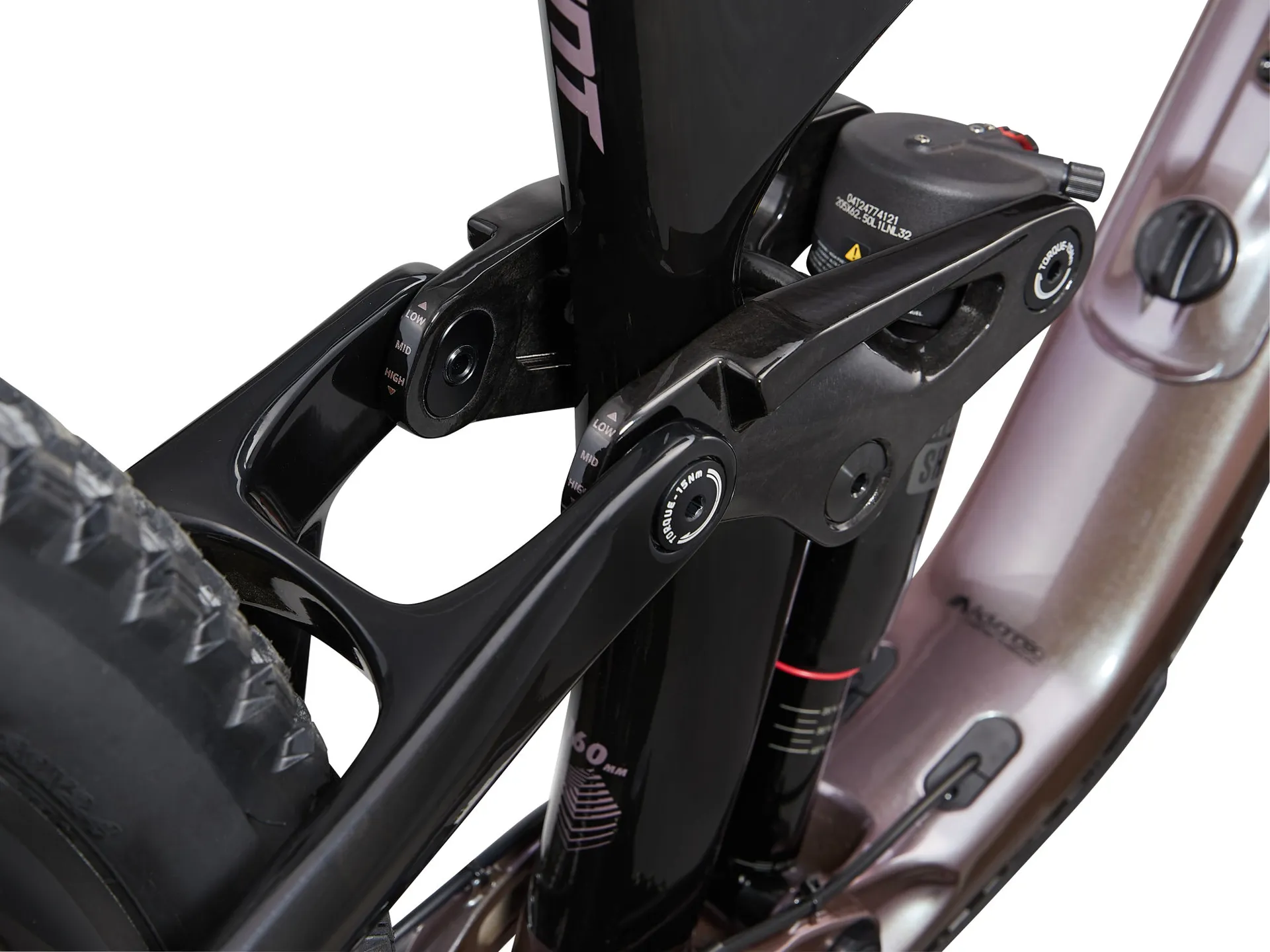

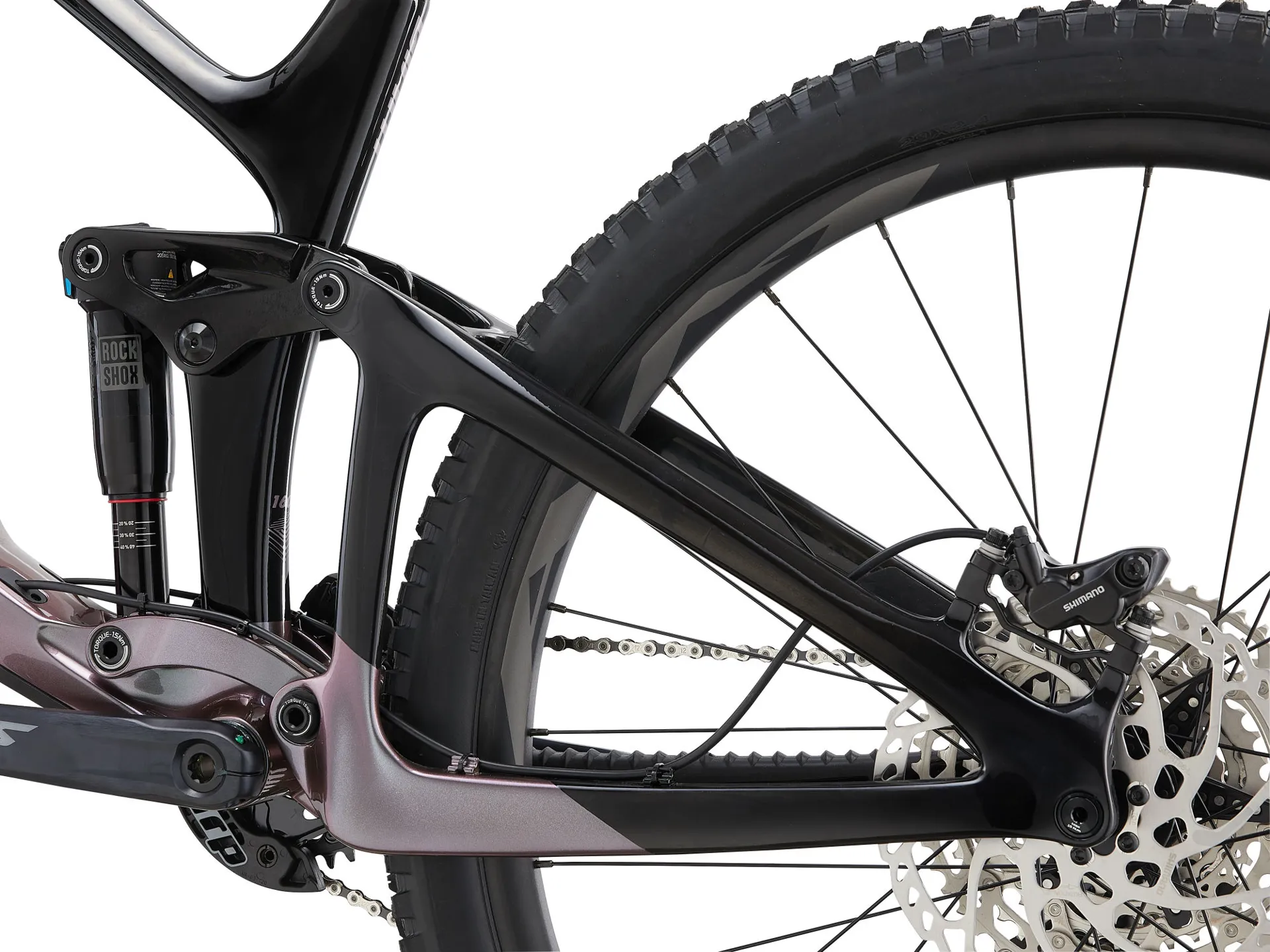

Frame | Advanced-Grade Composite front and rear triangles, Advanced Forged Composite rocker link, 160mm Maestro suspension, OverDrive (1 1/8" - 1 1/2"), BB89.5, UDH, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage, 2.5" max tyre size, 36t max chainring size, 3M tailgate protector, downtube and chainstay protection |
Fork | RockShox ZEB Select, 170mm, Charger RC, 15x110 Maxle Stealth, 44mm offset |

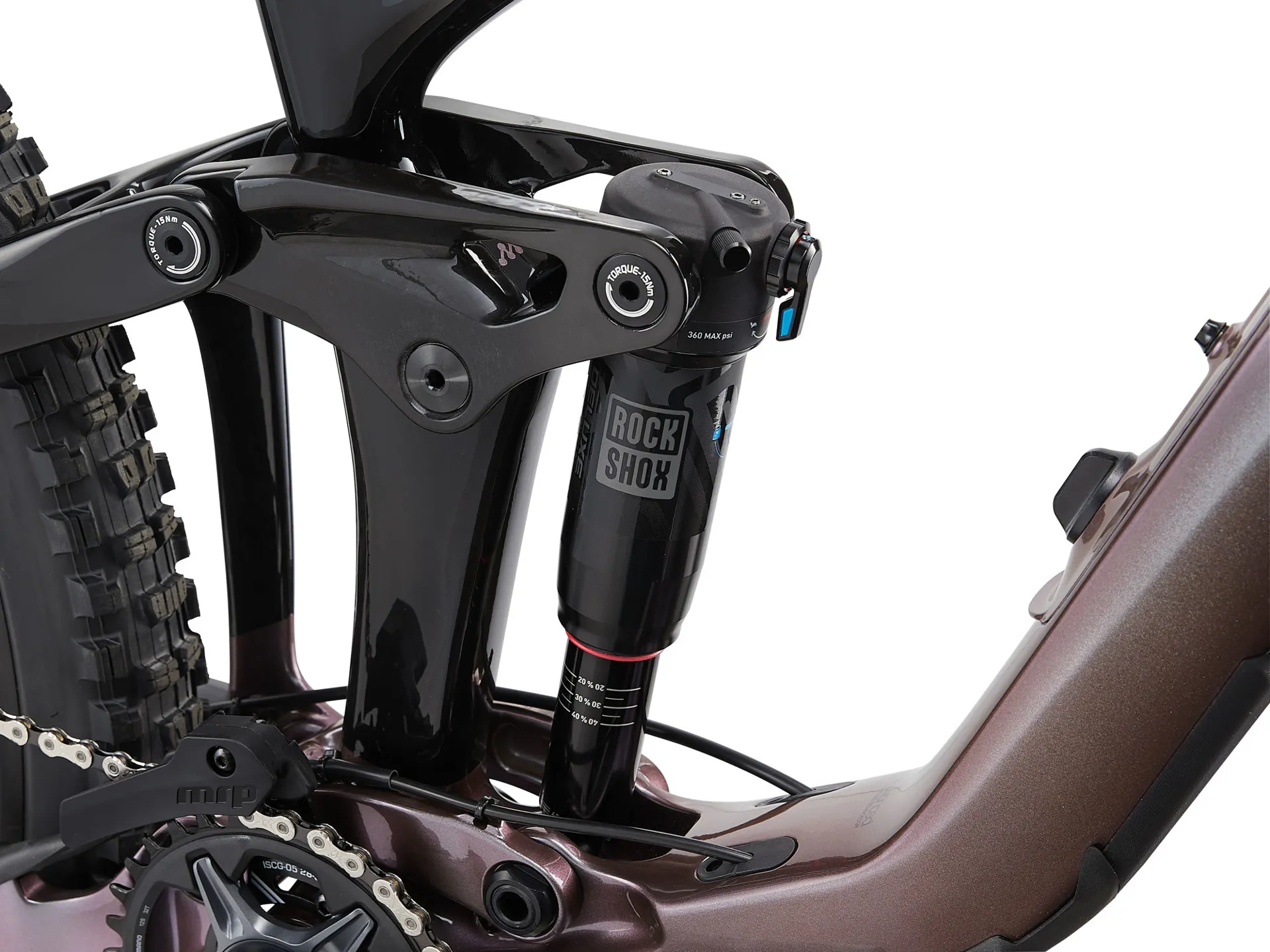

Shock | RockShox Deluxe Select+, 205/62.5mm |
Handlebar | Giant Contact TR35, composite, 800x35mm, 20mm rise |
Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm |
Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 525mm XL: 170-200mm travel / 30.9 x 525mm |
Saddle | Giant Romero SL |
Pedals | PEDALS NOT SUPPLIED |
Shifters | Shimano SLX SL-M7100, 1x12 |
Front Derailleur | N/A |

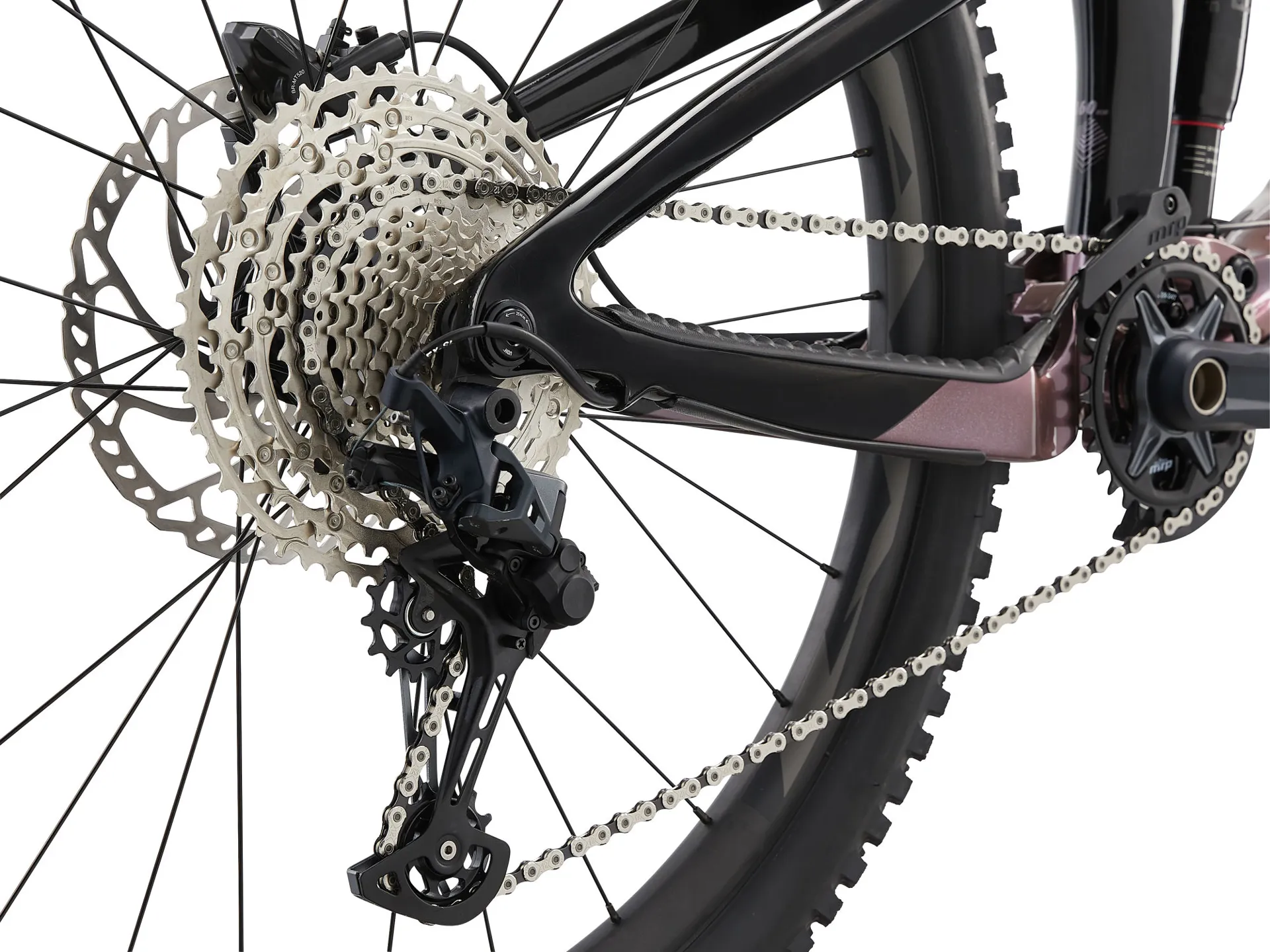

Rear Derailleur | Shimano SLX RD-M7100 |
Brakes | Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]203mm |
Brake Levers | Shimano Deore BL-MT501 |
Cassette | Shimano Deore M6100, 10x-51T |
Chain | KMC X12, w/ Missing Link |
Crankset | Shimano SLX, 32t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
Bottom Bracket | Shimano, press fit |
Rims | Giant AM 29, ETRTO: 30-622, tubeless ready (TL tape and valve included), alloy |
Hubs | Alloy, sealed [F] Giant, loose ball bearing, 6-bolt [R] Giant, cartridge bearing, Micro Spline driver, 6-bolt |
Spokes | Sapim Leader |
Tyres | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless |

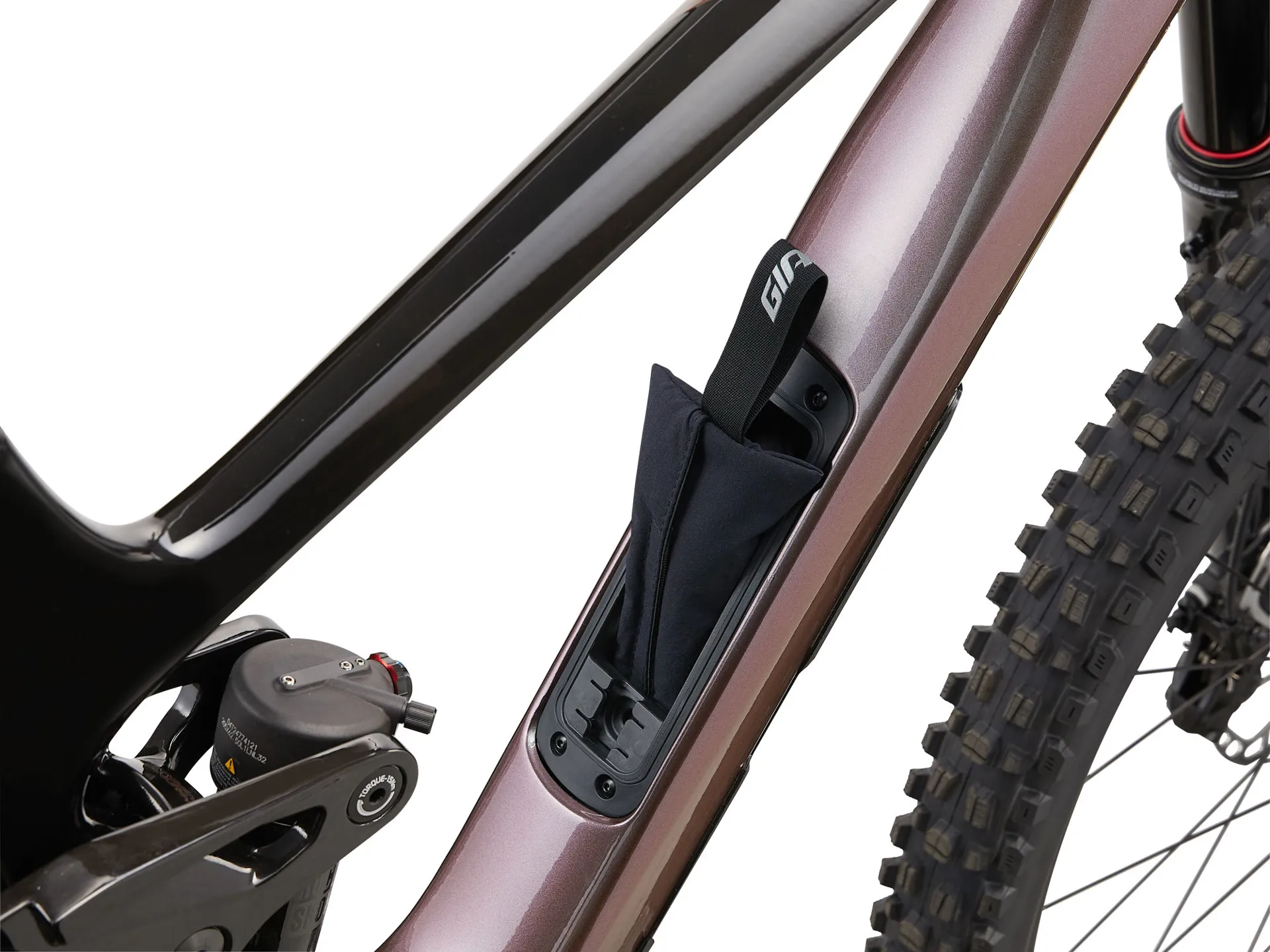

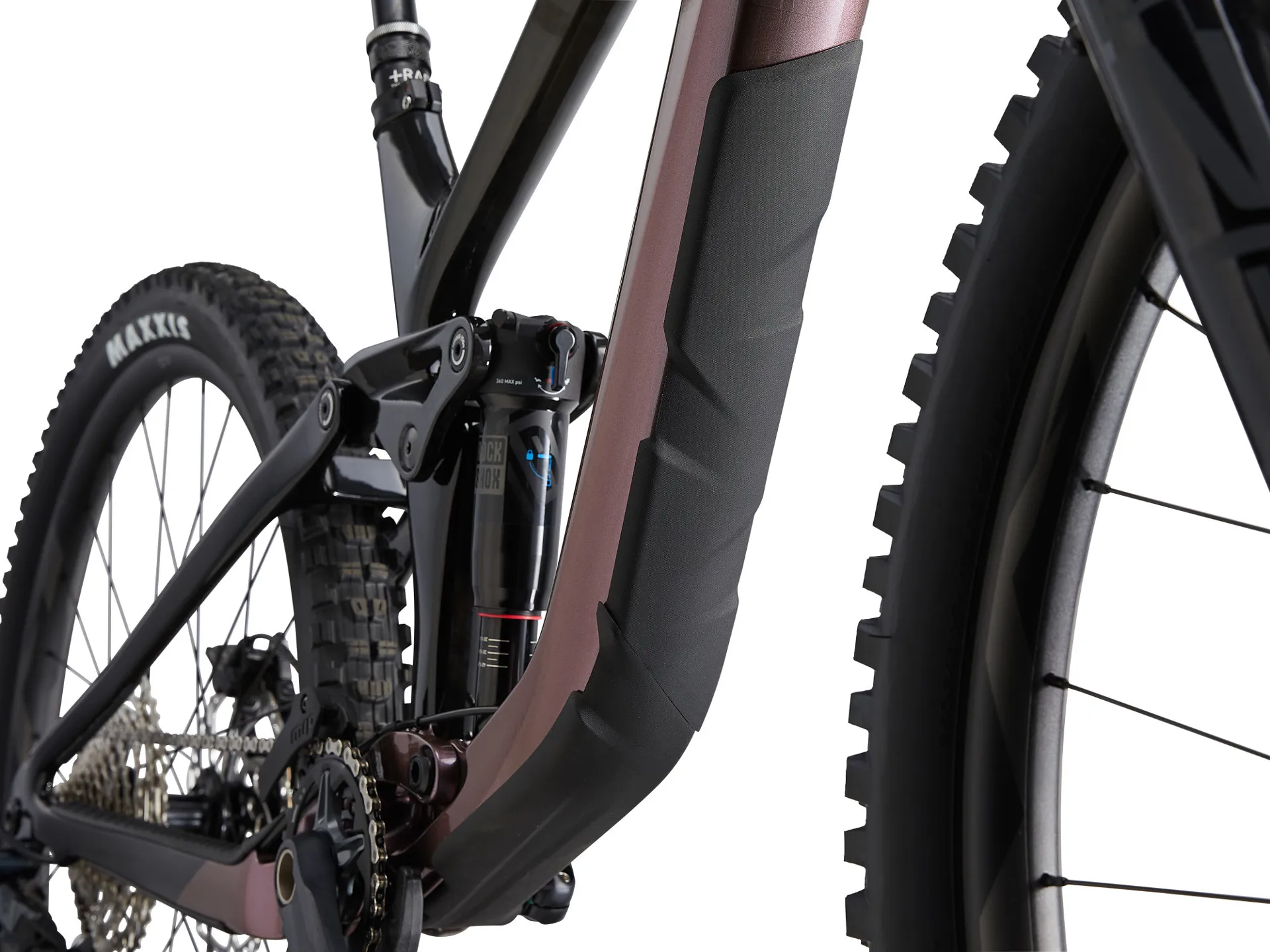

Extras | Factory tubeless set up. Tubeless kit (2x60ml Giant sealant, valve tool, instruction) 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector, downtube and chainstay protection, internal DT storage bag |
Max Tyre Clearance | 2.5" |
Max Chainring Size | 36t |
