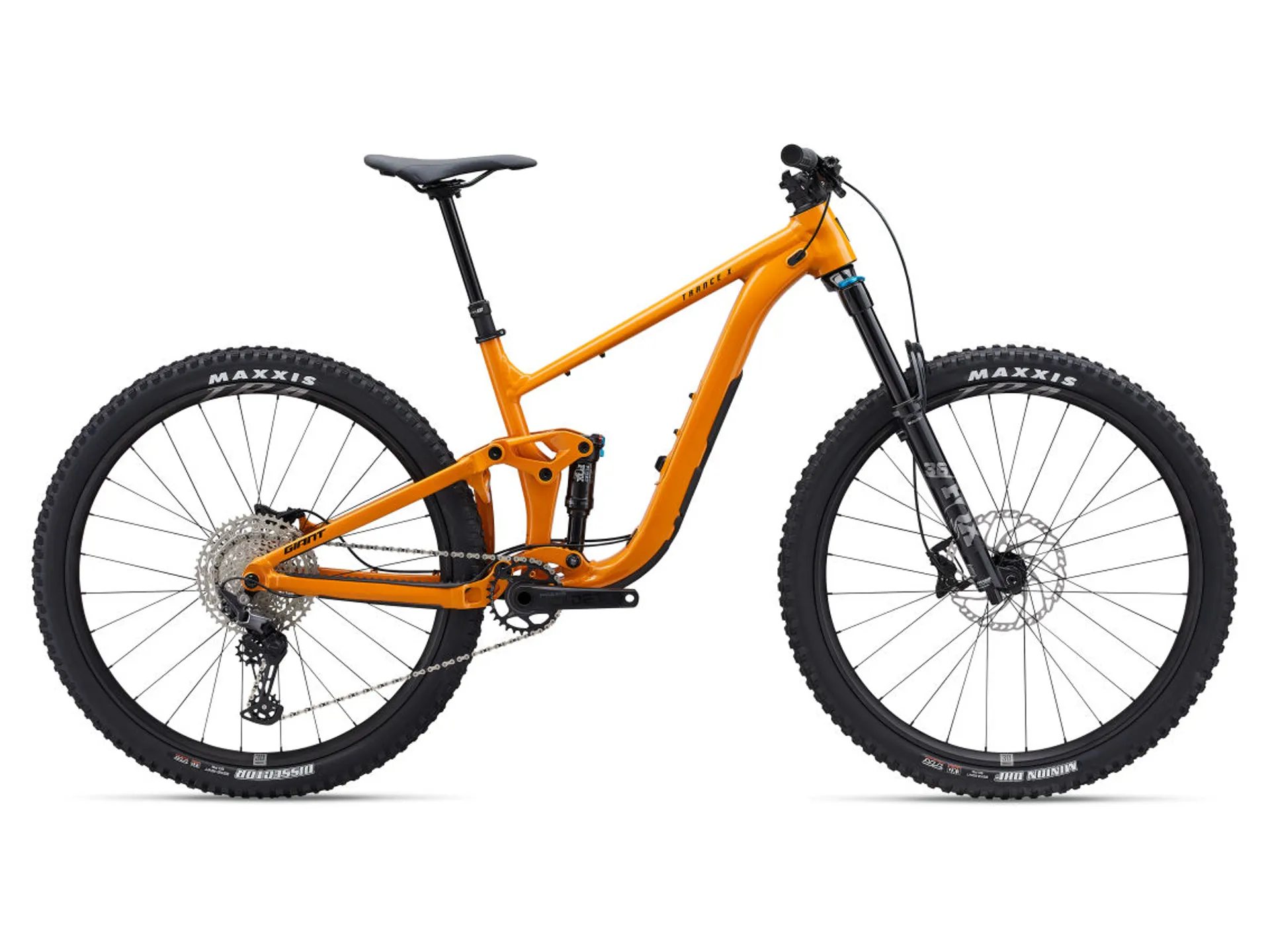

2024 Giant Trance X 2 Mens Mountain Bike in Orange

£3,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2024 Giant Trance X 2 Mens Mountain Bike in Orange

Season:2024

Brand:Giant

Code:9110002BRNGry

FIND YOUR FLOW ON TECHNICAL TRAILS. WITH ADJUSTABLE GEOMETRY, THE OPTION TO CHANGE REAR WHEEL SIZE, AND A NEW 140MM MAESTRO REAR SUSPENSION SETUP, THIS VERSATILE TRAIL BIKE STEAMROLLS SINGLETRACK WITH CONFIDENCE AND CONTROL.
KEY PERFORMANCE FACTORS
Updated suspension
A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.

Adjustable trail geometry
A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.

Rear wheel options
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimises stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tire clearance in the rear. Some riders favour this “mullet” setup for riding steep, technical terrain.
Technical Information
Sizes - S, M, L, XL
Colours - Gloss Sandstorm
Frame - ALUXX SL-grade aluminium front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle
Fork - Fox 36 Float Rhythm, GRIP damper, 44mm offset, 150mm, 15x110 Kabolt, custom tuned for Giant
Shock - Fox Float Performance, 185/52.5, custom tuned for Giant
Handlebar - Giant Contact TR35, 780x35mm, 20mm rise
Grips - Giant Tactal Pro Single S:120mm, M:120mm, L:130mm, XL:130mm
Stem - Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost - Giant Contact Switch Adjustable, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle - Giant Romero
Pedals - PEDALS NOT SUPPLIED
Shifters - Shimano Deore, 1x12
Front Derailleur - N/A
Rear Derailleur - Shimano Deore
Brakes - Shimano Deore BR-MT520, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers - Shimano Deore BL-MT401
Cassette - Shimano Deore, 10x51
Chain - KMC X-12
Crankset - Praxis Cadet, 30t, 55mm chainline
Bottom Bracket - Praxis, press fit
Rims - Giant TRA 2, 29" wheelset, hookless aluxx wheelsystem, 30mm inner width, 40mm outer width
Hubs - [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
Spokes - Sapim, 28, J-bend
Tyres - [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless
Extras - Factory tubeless set up, 2.5" max tyre size, 34t max chainring size
Weight - The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information
SizeHeight
S163 - 172cm
M171 - 180cm
L179 - 188cm
XL187 - 198cm


bike diagram with measurements referenced in table that follows

SMLXL
LOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGHLOW|MID|HIGH
ASEAT TUBE LENGTH(mm)400425450475
A1SEAT POST INSERTION DEPTH(mm)280305330355
BSEAT TUBE ANGLE76.8°|77.2°|77.5°76.8°|77.2°|77.5°76.8°|77.2°|77.5°76.8°|77.2°|77.5°
CTOP TUBE LENGTH(mm)571|570|569602|601|600624|623|622657|656|655
DHEAD TUBE LENGTH(mm)100105115125
EHEAD TUBE ANGLE64.4°|64.8°|65.1°64.4°|64.8°|65.1°64.4°|64.8°|65.1°64.4°|64.8°|65.1°
FFORK RAKE(mm)44444444
GTRAIL(mm)134.1|131.3|128.4134|131.3|128.5133.9|131.3|128.5133.9|131.3|128.6
HWHEELBASE(mm)1190|1190|11891222|1222|12211246|1246|12451281|1280|1280
ICHAIN STAY LENGTH(mm)440|439|438440|439|438440|439|438440|439|438
JBOTTOM BRACKET DROP(mm)40|35|3040|35|3040|35|3040|35|30
KSTACK(mm)617|614|611621|619|616631|628|625640|637|634
LREACH(mm)426|430|434456|460|464476|480|484507|510|514
MSTAND OVER HEIGHT(mm)732|737|742746|750|755763|768|773781|758|790
NHANDLEBAR WIDTH(mm)800800800800
OSTEM LENGTH(mm)40405050
PCRANK LENGTH(mm)165170170170
QWHEEL SIZE[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R
