Sizes
S: MX only
Colours
Mirage

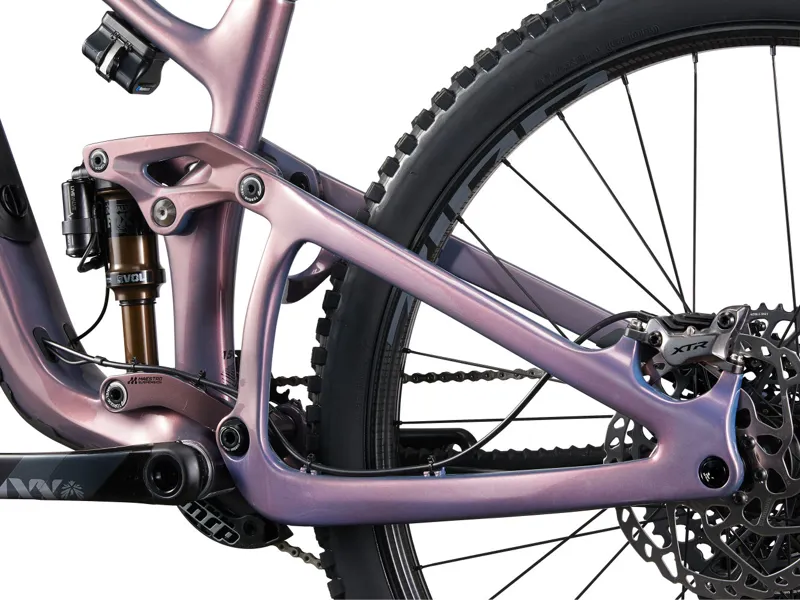

Frame
Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip – Maestro 3, integrated down tube storage

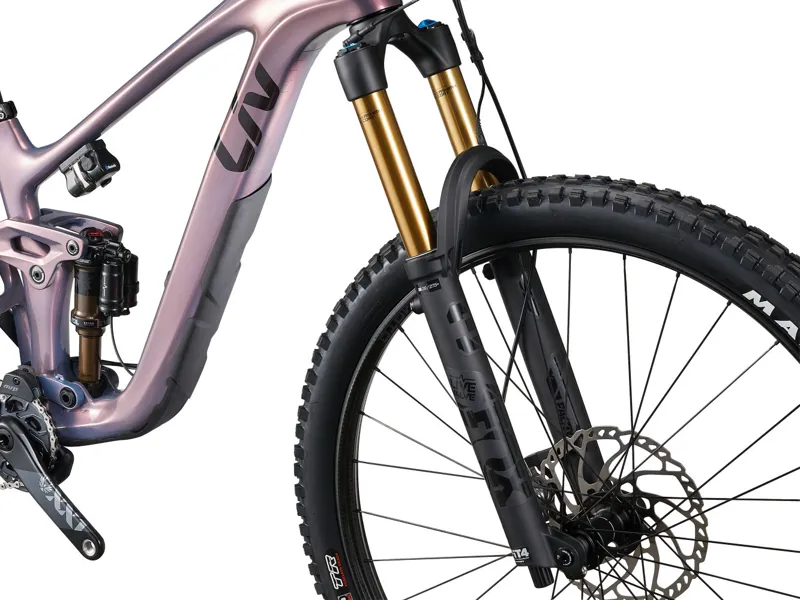

Fork
Fox 36 Factory Live Valve, 160mm, FIT4 damper, Boost, 15x110, Kabolt, tapered, 44mm offset

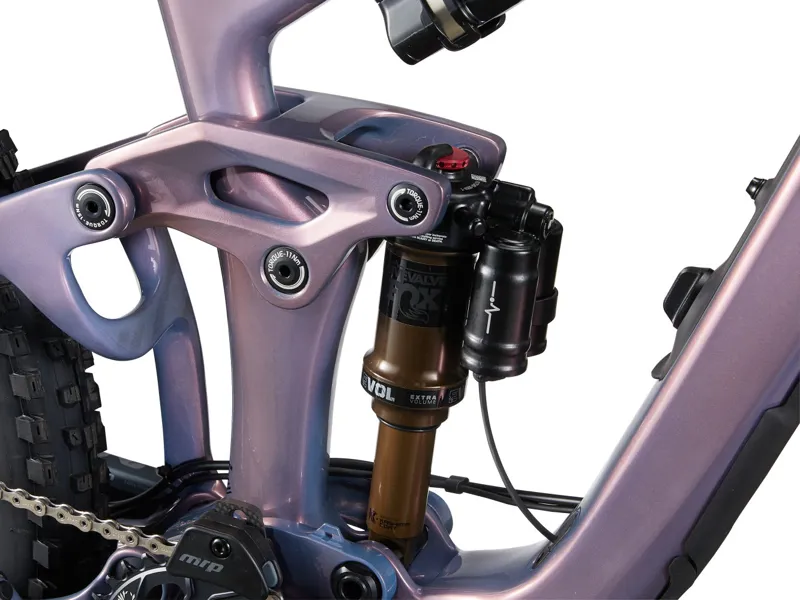

Shock
Fox Factory Live Valve 185x55, custom tuned for Liv

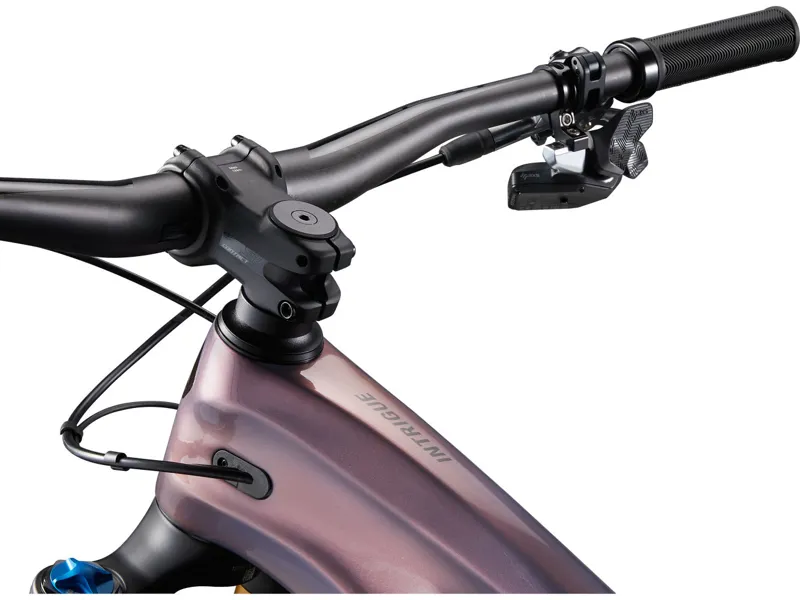

Handlebar
Giant Contact SLR TR35, composite, 35mm, 20mm rise S: 760mm
Grips
Liv Tactal Pro Single Lock-On S: 110mm
Stem
Giant Contact SL, 35mm S: 50mm
Seatpost
TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm
Saddle
Liv Sylvia
Pedals
platform
Shifters
SRAM AXS Rocker, 1x12
Front Derailleur
N/A

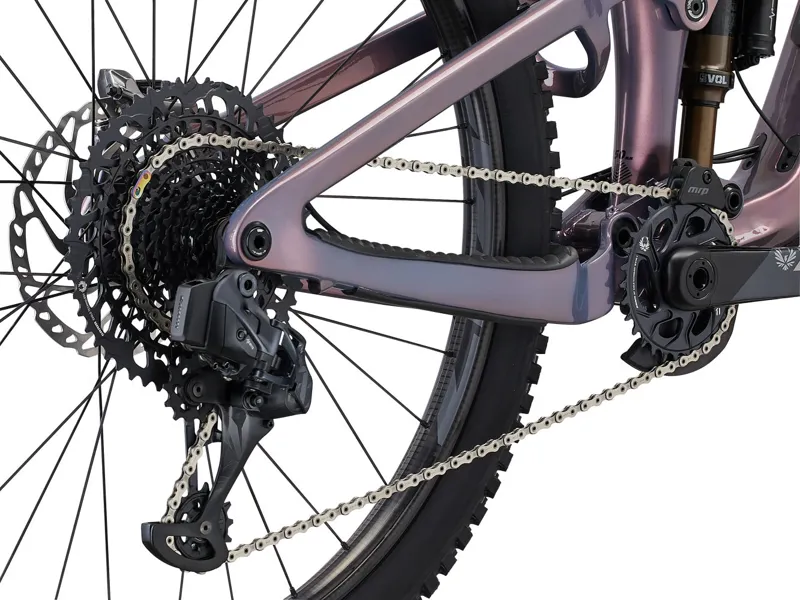

Rear Derailleur
SRAM XX1 Eagle AXS
Brakes
Shimano XTR M9120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers
Shimano XTR, BL-M9100
Cassette
SRAM XX1 Eagle AXS, 10x52
Chain
SRAM X01 Eagle
Crankset
SRAM XX1 Eagle DUB, 30t, 55mm chainline S: 170mm
Bottom Bracket
SRAM DUB, press fit
Rims
Zipp 3ZERO MOTO S: [F] 29", [R] 27.5"
Hubs
Zipp 3ZERO MOTO
Spokes
Zipp 3ZERO MOTO
Tyres
[Front] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [Rear] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless
Extras

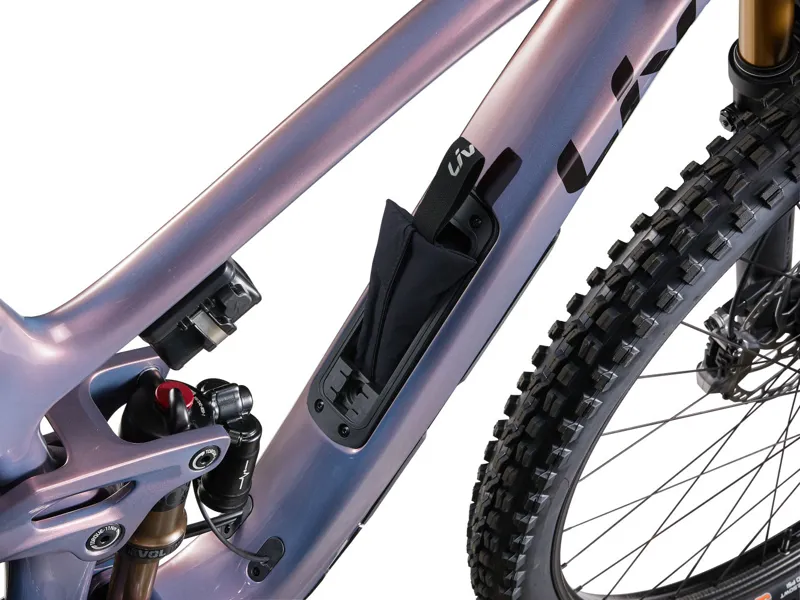

MRP AMg V2 chainguide, 3M tailgate protector, factory tubeless set up, max tire size 2.5", max chainring size 32t, integrated down tube storage bag
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
