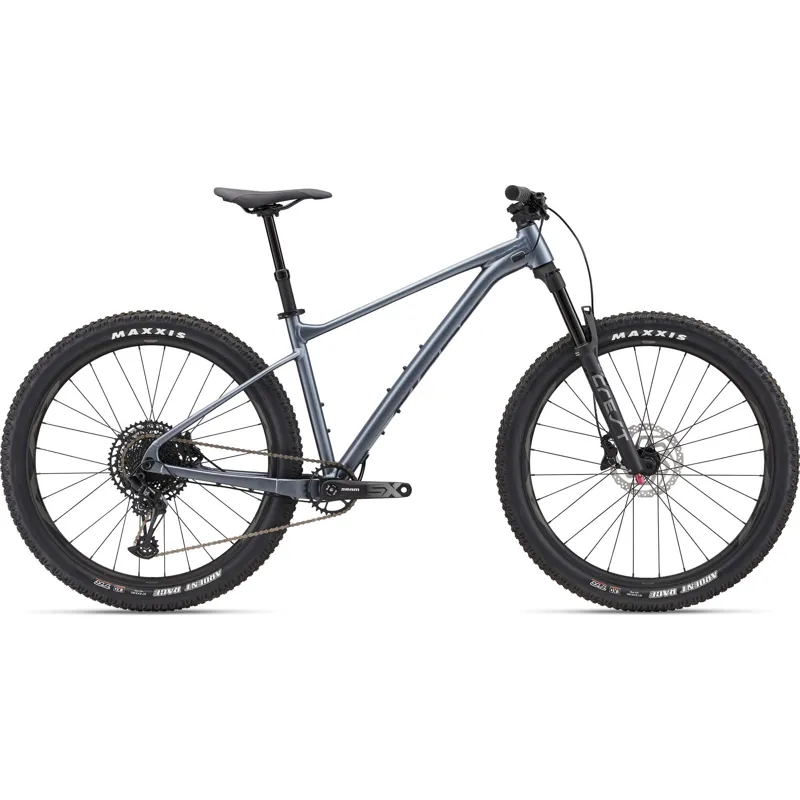

2022 Giant Fathom 1 Mens Mountain Bike in Blue

Season:2022

Brand:Giant

Code:2211014KnightShield

Get your daily dose of singletrack.

With a lightweight frame, 130mm suspension fork and 27.5 wheel with high-volume tyres, this hardtail offers loads of traction, speed and fun on the trail.

Features:

  • Trail tuned design - Balanced geometry with a 75-degree seat tube angle puts the rider in a powerful pedalling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.
  • Responsive handling - Lightweight ALUXX SL aluminium hardtail frame offers agile acceleration and manoeuvrability to help riders climb, corner and hammer the flats with efficiency and speed.

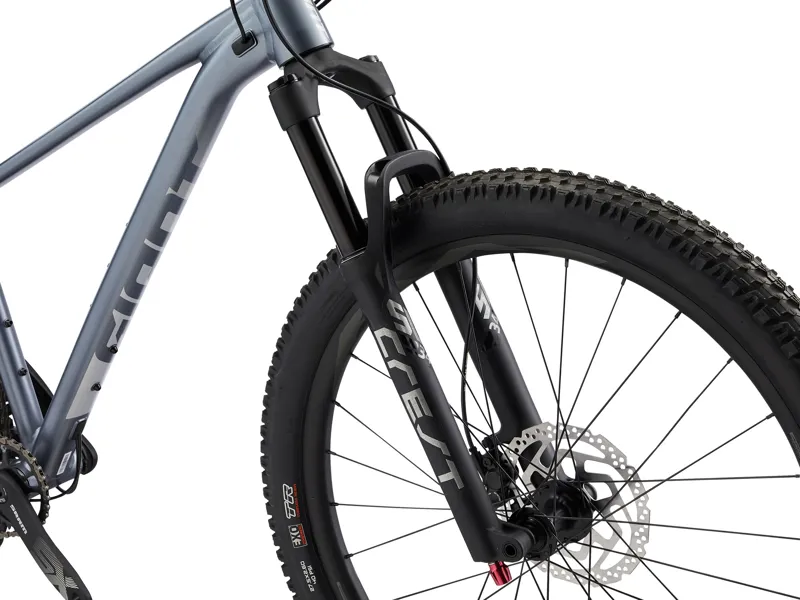

  • Smooth control - Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.
Technical Information
  • Sizes
    S, M, L, XL
  • Colours
    Knight Shield
  • Frame
    ALUXX SL-Grade Aluminum
  • Fork
    Giant Crest 34 SL RCL, 130mm, 44mm offset, Boost 15x110
  • Shock
    N/A
  • Handlebar
    Giant Contact TR35, 780x35mm
  • Grips
    Giant Sole-O
  • Stem
    Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
  • Seatpost
    Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm
  • Saddle
    Giant Romero
  • Pedals
    N/A
  • Shifters
    SRAM SX Eagle, 1x12
  • Front Derailleur
    N/A
  • Rear Derailleur
    SRAM NX Eagle
  • Brakes
    Shimano BR-MT420/410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
  • Brake Levers
    Shimano BR-MT401
  • Cassette
    SRAM SX Eagle, 11x50
  • Chain
    SRAM SX Eagle
  • Crankset
    SRAM SX Eagle, 30t S:165mm, M:170mm, L:170mm, XL:170mm
  • Bottom Bracket
    SRAM DUB, press fit
  • Rims
    Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm inner width
  • Hubs
    Alloy, sealed bearing
  • Spokes
    Stainless steel
  • Tyres
    Maxxis Ardent Race 27.5x2.6, folding, TR
  • Extras
    Factory tubeless set up, 2.6" max tyre size, 32t max chainring size
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information
SizeHeight
S163 - 172cm
M171 - 180cm
L179 - 188cm
XL187 - 198cm


bike diagram with measurements referenced in table that follows

SMLXL
ASEAT TUBE LENGTH(mm)380430465495
BSEAT TUBE ANGLE75.0°75.0°75.0°75.0°
CTOP TUBE LENGTH(mm)592612639662
DHEAD TUBE LENGTH(mm)9595105115
EHEAD TUBE ANGLE66.0°66.0°66.0°66.0°
FFORK RAKE(mm)44444444
GTRAIL(mm)113113113113
HWHEELBASE(mm)1154117412031227
ICHAIN STAY LENGTH(mm)435435435435
JBOTTOM BRACKET DROP(mm)60606060
KSTACK(mm)622622631640
LREACH(mm)425445470490
MSTAND OVER HEIGHT(mm)712726746771
NHANDLEBAR WIDTH(mm)780780780780
OSTEM LENGTH(mm)40405050
PCRANK LENGTH(mm)165170170170
QWHEEL SIZE27.5"27.5"27.5"27.5"
