2024 Giant Trance X Advanced E+ Elite 1 E-Mountain Bike in Black

£7,599.00 £9,499.00 20% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2024 Giant Trance X Advanced E+ Elite 1 E-Mountain Bike in Black

Season:2024

Brand:Giant

Code:6028031RawCBN

2024 Giant Trance X Advanced E+ Elite 1 Men’s Mountain Bike

Conquer Climbs and Tackle Trails with Unmatched Power and Control

Elevate your mountain biking experience with the 2024 Giant Trance X Advanced E+ Elite 1. This lightweight, full-suspension e-MTB is designed to help you accelerate up climbs, glide through rock gardens, and master technical trails with ease, thanks to its ultra-slim battery and advanced features.

Key Features:

  • Lighter Weight: The EnergyPak 400 battery system is ultra-slim, providing all the power you need in a compact, lightweight package that integrates seamlessly into the composite frameset.
  • Advanced Cockpit Control: The RideControl Ergo 3 remote attaches to the composite Giant Contact SLR integrated handlebar. It can be mounted on either side, allowing you to customize your controls for a clean, uncluttered cockpit.

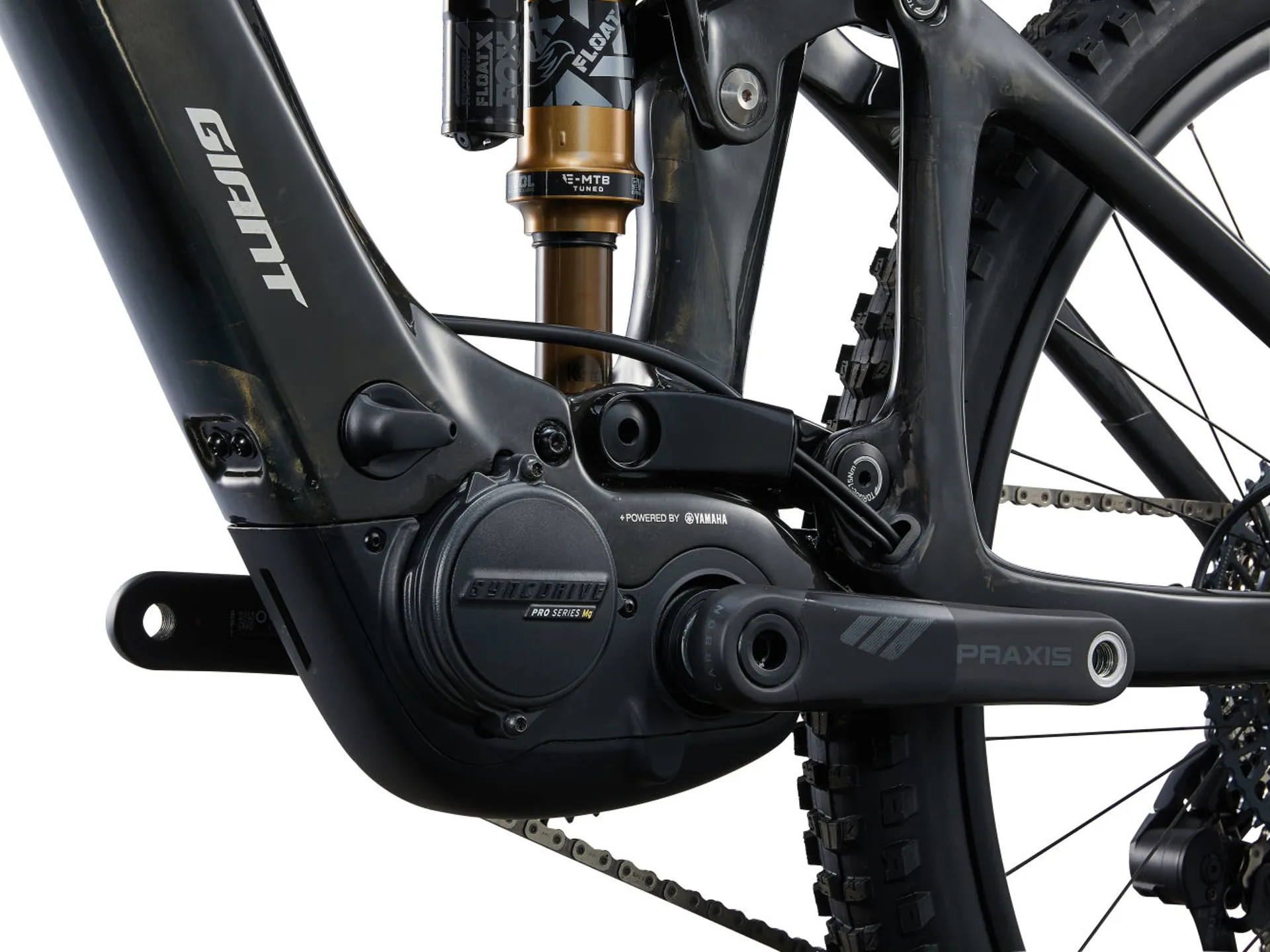

  • Enhanced Power: The new SyncDrive Pro Magnesium motor, featuring a magnesium casing, reduces weight by 50g. Weighing just 2.5kg, it delivers 85Nm of torque with instant engagement and is engineered for quieter performance.
Technical Information
  • Motor
    Giant SyncDrive Pro2 Magnesium 85Nm, PedalPlus 6-Sensor technology
  • Controller
    Giant RideControl Ergo3, grip integrated remote
  • Display
    Giant RideControl GO, frame integrated LED console Optional wireless ANT+ display
  • Battery
    Giant EnergyPak 400Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production, Giant EnergyPak Plus 200 range extender compatible
  • Charger
    Giant EnergyPak 4A smart charger, 60% in 1:45
  • Connectivity
    Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
  • Sizes
    S, M, L, XL
  • Colours
    Gloss Raw Carbon
  • Frame
    Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system
  • Fork

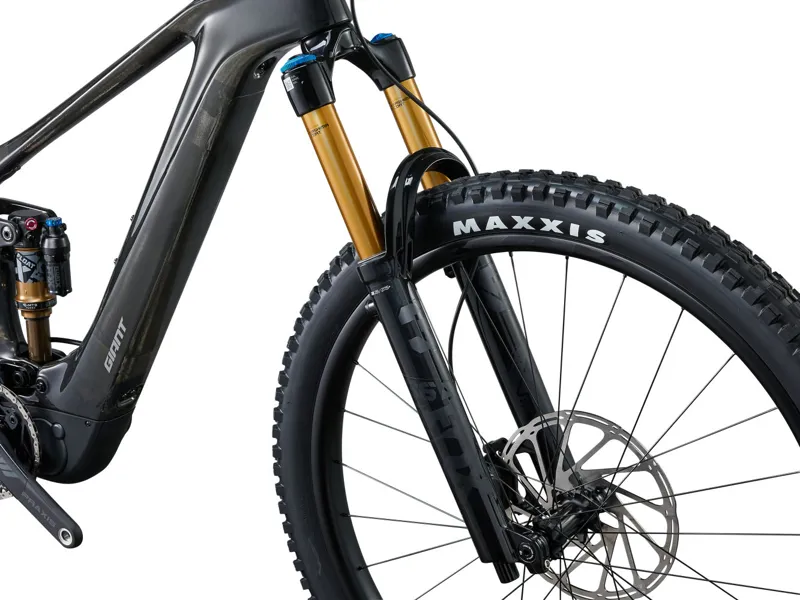

    Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
  • Shock

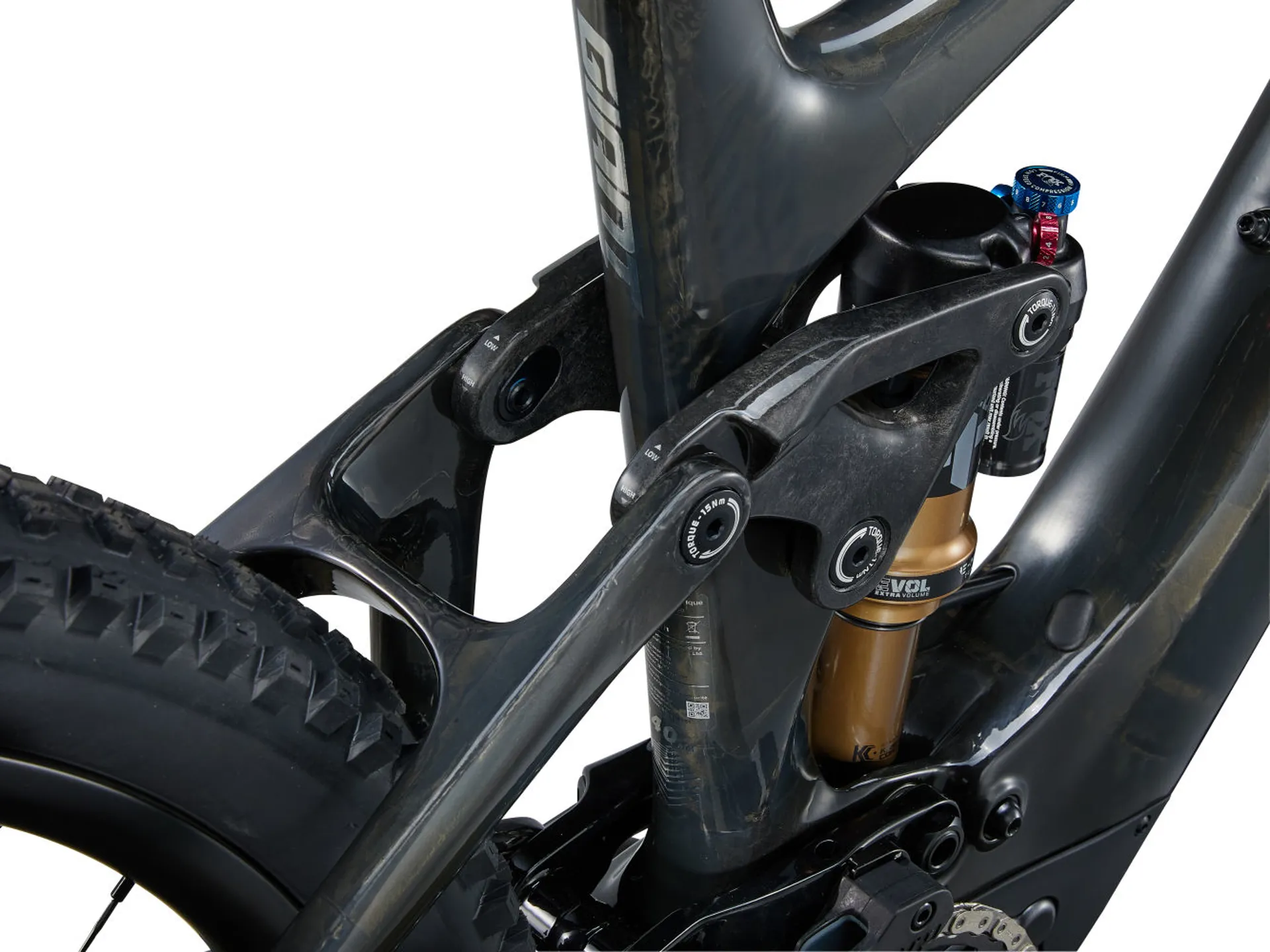

    Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30%
  • Handlebar
    Giant Contact SLR Trail, carbon, 800mm
  • Grips
    Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL)
  • Stem
    Giant Contact SLR Trail, integrated,40/45/50mm Reach, 7/9degree Sweep Adjust System
  • Seatpost
    Tranz-X Rad+ 30,9mm, 30mm travel adjustable (S:120-150mm, M:140-170mm, L/XL:170-200mm)
  • Saddle
    Giant Romero, Neutral
  • Pedals
    PEDALS NOT SUPPLIED
  • Shifters
    SRAM AXS Rocker Paddle, wireless electronic shifting 1x12
  • Front Derailleur
    MRP HD2 co-moulded chain guide
  • Rear Derailleur
    SRAM GX Eagle Transmission, AXS
  • Brakes
    SRAM Code R, 4-piston hydraulic disc, 220mm[F], 200mm[R]
  • Brake Levers
    SRAM Code R
  • Cassette
    SRAM GX Eagle Transmission, 10-52T, 12-speed
  • Chain
    SRAM GX Eagle Transmission Flattop Chain, Powerlock
  • Crankset
    Praxis Carbon e-crank arms (S/M:160, L/XL:165) SRAM Eagle Transmission E-MTB Chainring , Steel 36T
  • Bottom Bracket
    n/a
  • Rims
    E-TRX Hookless Tubeless ready Carbon 29 [F] / 27.5 [R] 30mm inner width
  • Hubs
    E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
  • Spokes
    -
  • Tyres
    Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R]
  • Extras
    Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied
  • Lighting
    Optional:- Giant Recon series e-bike lights available and direct connectable
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
Sizing Information
SizeHeight
S163 - 174cm
M171 - 182cm
L179 - 190cm
XL187 - 199cm


bike diagram with measurements referenced in table that follows

SMLXL
LOW|HIGHLOW|HIGHLOW|HIGHLOW|HIGH
ASEAT TUBE LENGTH(mm)400425450475
A1SEAT POST INSERTION DEPTH(mm)220245270295
BSEAT TUBE ANGLE77.2°|78.0°76.0°|76.7°76.0°|76.7°76.0°|76.7°
CTOP TUBE LENGTH(mm)577|575607|605636|634665|663
DHEAD TUBE LENGTH(mm)95100115130
EHEAD TUBE ANGLE65.7°|66.5°65.8°|66.5°65.8°|66.5°65.8°|66.5°
FFORK RAKE(mm)44444444
GTRAIL(mm)113.1|108113.1|108113.1|108113.1|108
HWHEELBASE(mm)1194|11951215|12121244|12441275|1275
ICHAIN STAY LENGTH(mm)447|447447|447447|447447|447
JBOTTOM BRACKET DROP(mm)10101010
KSTACK(mm)607|601611|605625|619639|633
LREACH(mm)439|447457|462480|487505|513
MSTAND OVER HEIGHT(mm)726|735733|742732|741741|750
NHANDLEBAR WIDTH(mm)780780780780
OSTEM LENGTH(mm)40405050
PCRANK LENGTH(mm)160165165170
QWHEEL SIZE29" [F] 27.5" [R]29" [F] 27.5" [R]29" [F] 27.5" [R]29" [F] 27.5" [R]
