2024 Giant Revolt E+ 1 Mens Electric Gravel Bike in Green

£4,499.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item (apart from nutrition products) can be returned to us within 28 days of purchase, given the item has not been used or fitted, and is returned in its original packaging with valid proof of purchase.

Online purchases can be returned either in store at Giant Lincoln or returned to us via post.

Giant Lincoln Returns address:

Returns
Giant Store Lincoln
Doddington Hall
Doddington
LN6 4RU

Giant Tugby Returns Address:

Returns
Giant Tugby
Wood Lane
Tugby
LE7 9WE

Customer Returns Form

If you wish to cancel, return or exchange an order please print and complete the returns form below. Place the form inside your return package along with your receipt.

Return Terms & Conditions

Items must be returned in their original packaging and be unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers: should you decide your item is not right for you, it can be exchanged or refunded straight away in store, or you still have up to 28 days to return it if you take the item away.

If the items we have sent you are faulty, damaged or not as we described, we will cover any associated re-delivery/return postage costs.

Refunds will be processed using the same method of payment used for the original purchase.

We are unable to offer a refund without a valid receipt.

Please see the Terms & Conditions page for full guidance.

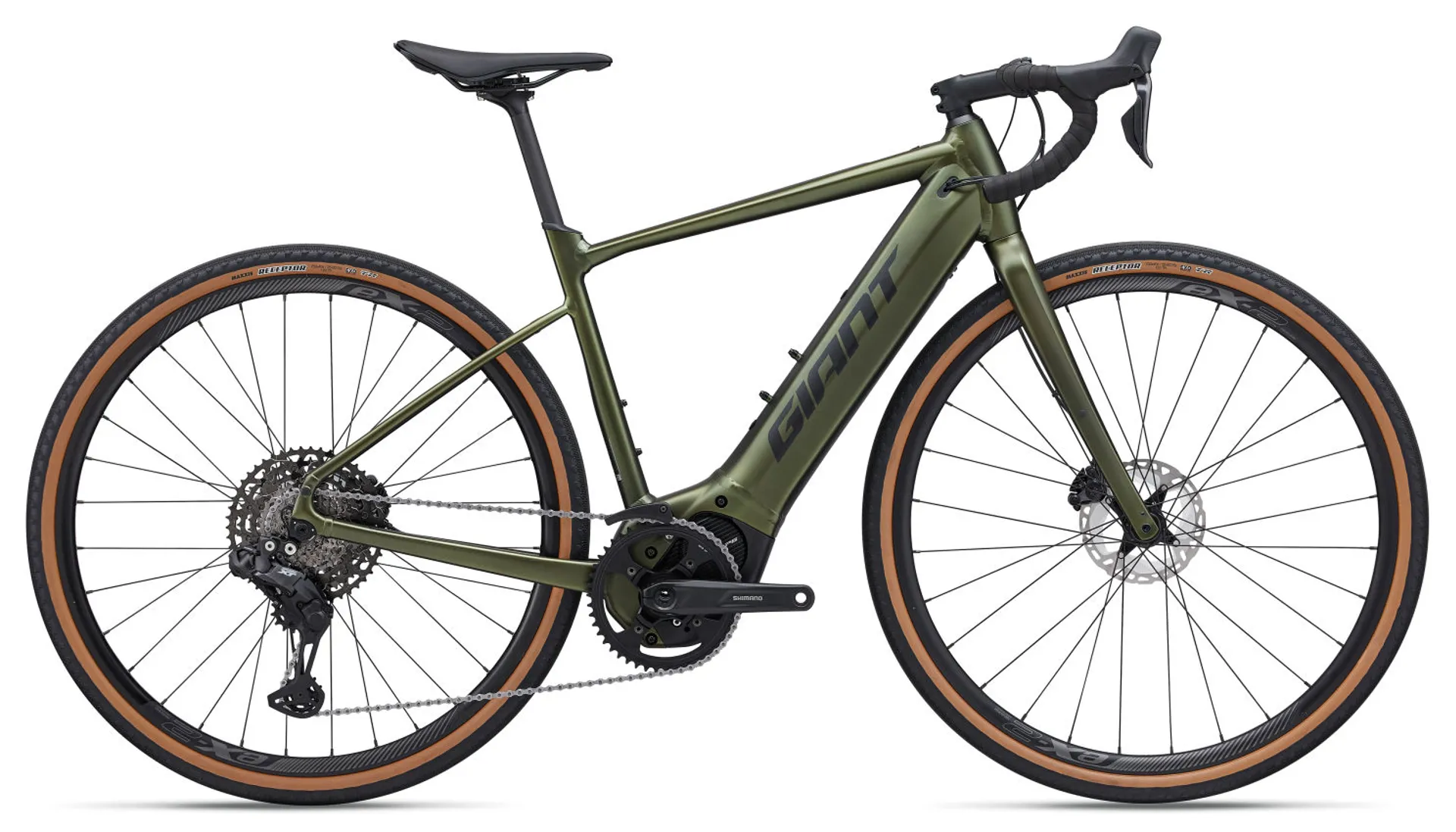

2024 Giant Revolt E+ 1 Mens Electric Gravel Bike in Green

Season:2024

Brand:Giant

Code:6052000PhantomGRN

FROM ROUGH ROADS TO GRAVEL, DIRT AND MIXED TERRAIN ADVENTURES, THIS VERSATILE DROP BAR E-BIKE GIVES YOU THE POWER TO RIDE FARTHER AND FASTER ON ANY ROUTE YOU CAN DREAM UP.

KEY PERFORMANCE FACTORS
Unlimited adventure
New SyncDrive EP6 motor powered by Shimano, lightweight ALUXX SL aluminium frame, smooth-riding tubeless tyres and a comfortable D-Fuse seatpost give you the ability to ride any road, any route.

Powerful, integrated battery
EnergyPak Smart Compact 500 battery delivers long-distance pedalling support and is seamlessly integrated into the frame for a sleek overall profile.

System simplicity
With the press of the simple RideControl Go on/off button on the top tube, you are ready to go. The Smart Assist mode keeps you spinning without any worries. ANT+ capability further allows you to connect a bike computer of choice.

Technical Information

Motor
Shimano EP600, 85Nm
Controller
Mode support switch from Shimano GRX STI
Display
Giant RideControl GO, frame-integrated LED consoleOptional wireless ANT+ display
Battery
Giant EnergyPak 500Wh Campact, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible
Charger
Giant EnergyPak 4A smart charger compact, 60% charge in 2:00h
Connectivity
Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Sizes
S, M, ML, L, XL
Colours
Gloss Phantom Green
Frame
ALUXX SL aluminium
Fork
Advanced-grade composite,12x100 thru-axle
Handlebar
Giant Contact XR D-Fuse 31.8 alloy 5° back sweep
Grips
Velo cork tape with gel
Stem
Giant Contact 31.8 alloy
Seatpost
Giant D-Fuse SL, composite
Saddle
Giant Approach
Pedals
Aluminium Platform
Shifters
Shimano Ultegra Di2 1x11
Front Derailleur
N/A
Rear Derailleur
Shimano XT Di2
Brakes
Shimano BR-R8170, hydraulic disc, 160mm [F/R]
Brake Levers
Shimano ST-R8170 hydraulic disc
Cassette
Shimano CS-LG700-11, 11-50t
Chain
KMC eGlide NP/BK, e-bike optimised
Crankset
Shimano FC-EM600 crankarm Shimano SM-CRE80-R, 47T chainring
Bottom Bracket
N/A
Rims
Giant eX 2, Tubeless Ready, 700c Aluminium
Hubs
Giant Performance Tracker Road, Sealed Bearing
Spokes
Sapim E-Lite [r] Race [f]
Tyres
Maxxis Receptor, EXO, 700x40c, Tubeless
Extras
Tubeless kit (liquid, valves, levers, manual, tool)
Weight
The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Sizing Information

Size	Height
S	161 - 172cm
M	168 - 178cm
ML	175 - 185cm
L	181 - 192cm
XL	189 - 200cm

bike diagram with measurements referenced in table that follows

		S	M	ML	L	XL
A	SEAT TUBE LENGTH(mm)	450	475	500	525	550
B	SEAT TUBE ANGLE	73.5°	73.0°	73.0°	73.0°	73.0°
C	TOP TUBE LENGTH(mm)	555	555	565	575	590
D	HEAD TUBE LENGTH(mm)	135	150	165	180	195
E	HEAD TUBE ANGLE	71.0°	71.0°	71.0°	71.0°	71.0°
F	FORK RAKE(mm)	50	50	50	50	50
G	TRAIL(mm)	68.8	68.8	68.8	68.8	68.8
H	WHEELBASE(mm)	1049	1049	1059	1070	1085
I	CHAIN STAY LENGTH(mm)	455	455	455	455	455
J	BOTTOM BRACKET DROP(mm)	85	85	85	85	85
K	STACK(mm)	573	587	601	615	629
L	REACH(mm)	380	375	381	387	397
M	STAND OVER HEIGHT(mm)	742	747	798	810	830
N	HANDLEBAR WIDTH(mm)	420	440	440	460	460
O	STEM LENGTH(mm)	80	90	100	110	120
P	CRANK LENGTH(mm)	165	170	170	170	170
Q	WHEEL SIZE	700C	700C	700C	700C	700C
